Overview
Flowlint was created as part of an internal Cisco project to be used to do basic linting on Cisco SecureX Orchestrator workflows. It can be used to check various rules against these workflows. It was created using Spectral Lint and can be extended easily as such. Each workflow rule was learned over time and thus we wish to pass this learned information on to others.

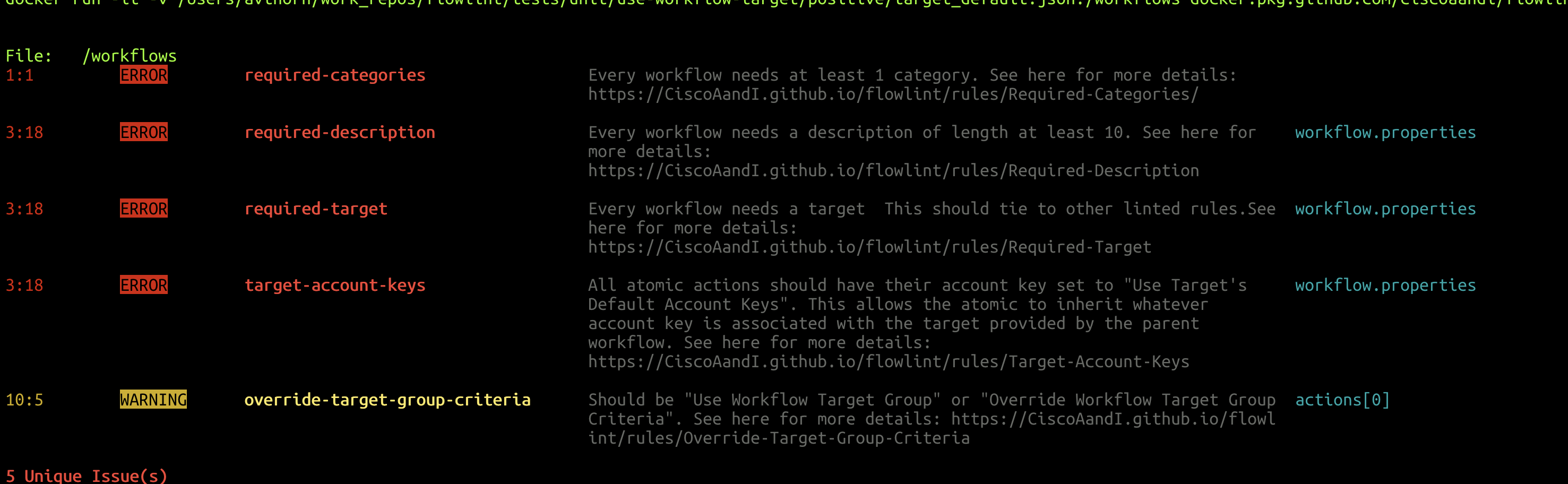

Example
Getting Started
Installation
Flowlint is a fully dockerized linter that can be used within the docker container in various CI pipelines or locally. It was designed in pure javascript and also can therefore be run in a browser. To install flowlint, simply download the docker container as shown:
docker pull docker.pkg.github.com/ciscoaandi/flowlint/flowlint:${VERSION}
Where ${VERSION} is the version you would like to use. See Flowlint Packages for a list of available Flowlint versions.
docker run -it -v ${PATH_TO_WORKFLOW_JSON}:/workflow.json docker.pkg.github.com/ciscoaandi/flowlint/flowlint:${VERSION} /workflow.json
Where ${VERSION} is the version you would like to use. See Flowlint Packages for a list of available Flowlint versions.
and ${PATH_TO_WORKFLOW_JSON} is the filepath to the workflow.json file you would like to lint.
Example
docker pull docker.pkg.github.com/ciscoaandi/flowlint/flowlint:1.0.0
Usage
To lint a workflow, simply use the following command:
docker run -it -v ${PATH_TO_WORKFLOW_JSON}:/workflow.json docker.pkg.github.com/ciscoaandi/flowlint/flowlint:1.0.0 /workflow.json
Where ${PATH_TO_WORKFLOW_JSON} is the filepath to the workflow.json file you would like to lint.
Example
docker run -it -v my_workflow.json:/workflow.json docker.pkg.github.com/ciscoaandi/flowlint/flowlint:1.0.0 /workflow.json
